Quick Details

  • Condition: New
  • CNC or Not: CNC
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: DRAGON DIAMOND
  • Model Number: LZ-1318
  • Voltage: AC380V 50Hz
  • Power(W): 3KW
  • Dimension(L*W*H): 1300mm*1800mm*300mm
  • Weight: 1200kg
  • Certification: CE
  • Warranty: 24 months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • table structure: Aluminum T-slot
  • X Y Transmission: Rack Gear
  • Control System: NCSTUDIO
  • Spindle power: 3.0KW Water Cooling
  • Z Transmission: Germany NEFF Ball Screws
  • Command Language: HPGL, G Code
  • Driving System: stepper motor
  • X Y Z Guide Rail: TAIWAN HIWIN Square Rail

Packaging & Delivery

Packaging Details: Standard Exporting Plywood Wooden Case

 heavy stone carving machine / Marble stone CNC router machine LZ-1318





Machine Configuration:

1. Steel lathe bed with tank.

2. Rack gear for X Y axis, Germany NEFF ball screw for Z axis.

3. TAIWAN HIWIN square rail.

4. Z axis use dust-proof structure.

5.  3.0kw spindle, leadshine driver.

6. Stepper motor.

7. Ncstudio Control System ,DSP Operation System is optional.



Optional Parts:

1. DSP Controller (Allow machine work without connecting computer)

2. 4.5KW/5.5KW water cooling spindle.



Technical Parameters:

Model NO.

3D heavy stone carving machine LZ-1318

Table Size(mm)

1600mm*2400mm

X Y Z Traveling Area(mm)

1300mm*1800mm*380mm

Table Structure

Aluminum T-slot

X Y Transmission

Rack Gear

Z Transmission

Germany NEFF Ball Screws

X Y Z Guide Rail

TAIWAN HIWIN Square Rail

Spindle Power

3.0KW Water Cooling

Max. Spindle Power

24000 r/min

Max. Traveling Speed

25 m/s

Max. Working Speed

18 m/s

Processing Accuracy

±0.025mm

Reposition Accuracy

≤0.025mm

Driving System

Stepper Motor

Command Language

HPGL, G Code

Operation System

NCSTUDIO

Working Voltage

AC380V ,50Hz

Net Weight/Gross Weight

1100KGS /1200KGS

Package Dimension

3000mm*2200mm*1800 mm



Applicable Materials:

Natural marble, granite, artificial stone, tombstones, milestones, ceramic tiles, glasses, and many other materials, such as wood, acrylic, plastic, dual color board, etc.



Main Parts:

Engraving processing:

Machine Samples:

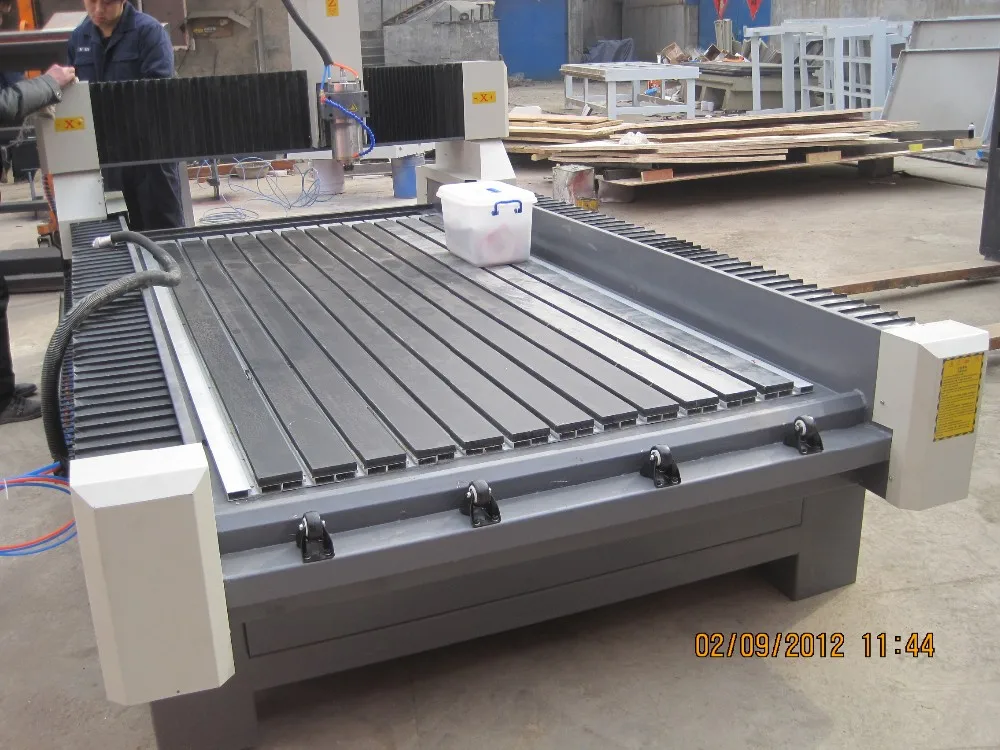

Machine in workshop:











Packing & Shipping:



standard plywood packing for export , shipping by sea, air or railway







About after-sale service:


a. we offer 2 years warranty for whole machine(DSP, driver, motors, inverter, etc)
b. for spindle: we offer 1 year guarantee--this is what spindle supplier offer to us.
c. for carving tools: it is consumable part, so we could not offer guarantee for carving tools.
If the accessories are broken because of quality problems during warranty time, you can send back to us, we will repair and send back to you freely.

d. 24hours technical will be support when you need.
